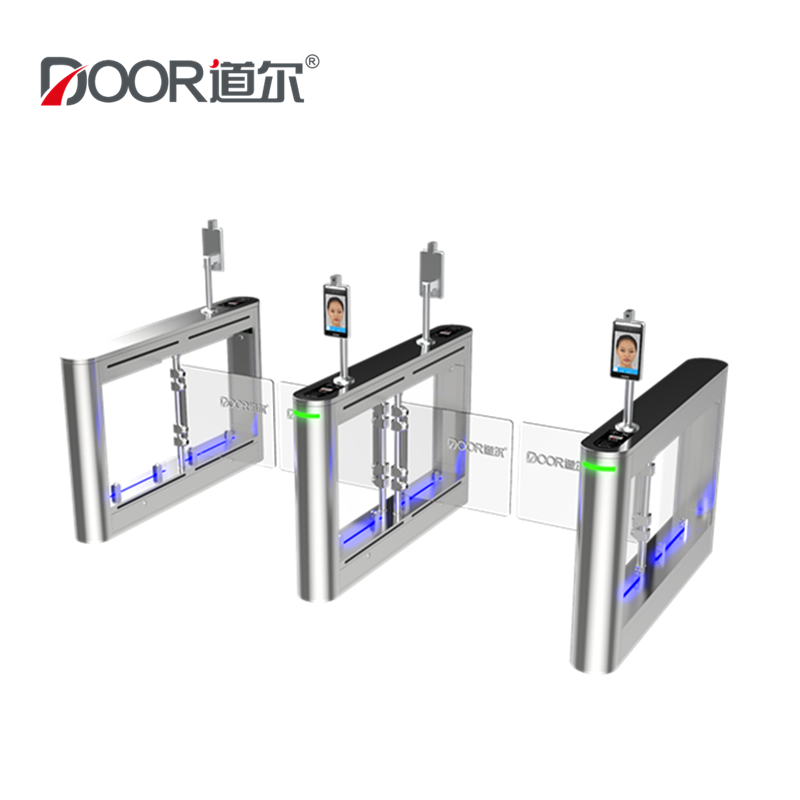

Fast Passing Security And Health Control System Pedestrian Swing Gate Turnstile

Name: Fast Passing Security And Health Control System Pedestrian Swing Gate Turnstile
Brand: DOOR
Price: 1 USD

Fast Passing Security And Health Control System Pedestrian Swing Gate Turnstile Manufactures

Brand Name : DOOR

Model Number : DR.TD.6653

Certification : CE / IS09001

Place of Origin : Shenzhen,China

MOQ : 2 sets

Price : negotiable

Payment Terms : T/T

Supply Ability : 2500 sets per month

Delivery Time : 5-7 working days

Packaging Details : wooden carton

Product Name : Fast Passing Security and Health Control System Pedestrian Swing Gate Turnstile

Material : SUS304 brushed stainless steel

Voltage : AC110V/AC220V±10%

Driving Motor : DC 24V brushless motor

Size : L1600×W210×H1000mm

Passage width : 550mm~1200mm

Warranty : 1 Year

Infrared : 6 Pairs

Working environment : indoor/outdoor

Contact Now

Fast Passing Security and Health Control System Pedestrian Swing Gate Turnstile

Product Description:

pedestrian swing gate is the popular system for entrance control system
It is widely used in areas such as subway, immigration checkpoint, airport, factory, etc.
Each lane range is from 550mm~1200mm customized by you even for wheelchair

Product Parameter:

Structure Parameter
Material	SUS304 brushed stainless steel, top 2.0mm, body 1.5mm
Swing gate material	Acrylic or Stainless Steel (Optional)
Channel Width	550mm Customized Max: 1200mm
Technical Parameter
Passing Speed	30-35 personal/min
Opening Speed	Adjustable <1S
Working Temperature	-25℃-+70℃
Mean Cycles Between Failure	5 million times
IP Rating	IP54(if used outdoor, recommend to build a canopy)

Fast Passing Security And Health Control System Pedestrian Swing Gate Turnstile

Warranty Service Statement:

SHENZHEN DOOR products are automatic road barriers,car paking system,,tripod turnstile gate,swing barrier gate,flap barrier gate,fast speed turnstile,full height turnstile gate,and all kinds of access control system,such as the rfid card,,face recognition

Fast Passing Security And Health Control System Pedestrian Swing Gate Turnstile
